Final Products: Doritos chips, Tortilla chips, Bugles, crispy rice, etc. 2 D, 3 D snacks.
Capacity: 100kg/h-800kg/h
Raw Material: Wheat flour, corn flour, rice flour, etc.
Certification: CE, ISO9001, SGS
|
Model |
TSE65 |
TSE70 |
TSE75 |
TSE78 |
|
Installed Power |
88KW |
126KW |
150kw |
170kw |
|
Capacity |
100-150kg/h |
200-260kg/h |
300-500kg/h |
500-800kg/h |
|
Dimension |
21m*1.6m*2.2m |
30m*1.6m*2.2m |
35m*2.0m*2.6m |
40m*2.2m*2.8m |

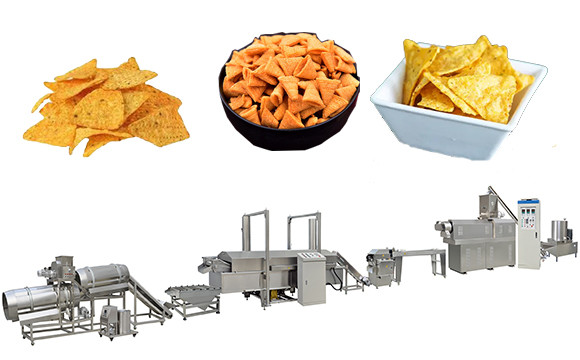

Production Line Introduction:
The production line uses corn flour, wheat flour, rice flour, etc. as the main raw materials. The treated raw material are extruded by a twin-screw food extruder, and then rolled or punched into various shapes such as triangles, circles, hexagons, and cartoons, and then fried ( or baking), seasoning, can produce a variety of shapes and tastes, such as "Doritos" crisp chip snacks. The food produced is crispy, fragrant and delicious, and will not get greasy after eating for a long time.
The production line has reasonable design, advanced production technology, high degree of automation, stable performance and flexible configuration, which can realize extrusion, curing, composite molding, frying, seasoning and packaging in one. This equipment can also produce various 2D and 3D fried snacks such as Bugles, pizza rolls, rice crusts, small fish-shaped snacks, duckling-shaped snacks, gourd/peanut/pagoda shaped snacks, etc.

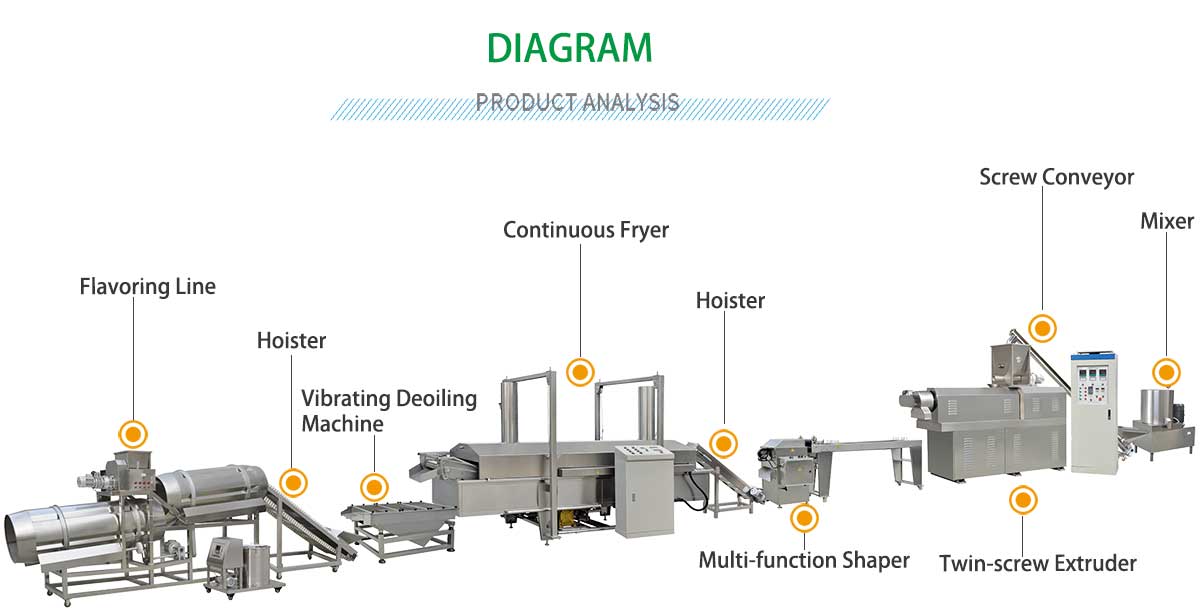

Production Flow:
Raw material processing→extrusion and puffing→shaping and cutting→frying→deoiling→seasoning→packaging
Equipment Features:
●Visual automatic temperature control system to make temperature control more intuitive and parameters more accurate
●The main extruder adopts frequency speed controlling with high automation and stable per-formation.
●The screws are made of alloy steel and special craft, durable usage, high hardness, and the screw life is longer. Adopting the building block structure and combining arbitrarily according to the different demands.
●The forced lubrication system, can guarantee the equipment transmission life longer.
●Self-cleaning, when stopping, can be cleaned without disassembling.
●According to different screw design rates to meet different technology request.
●This equipment has a wide raw material range, multi-shape products, and flexible collocations. We can produce different products according to the different models and configurations.
Output:
According to different configurations of the production line, the output range is 100kg/h--800kg/h
Video of Production Line Working：
Doritos Chip Snack Samples :
If you have any needs, please pay attention to them and we will reply to you as soon as possible
